Chapter 8 Lecture Waves and WaterDynamics

All waves begin as disturbances, and ocean waves form as the result of a disturbing force.

Wave Generation

  • Disturbing force causes waves to form.
  • Wind blowing across ocean surface
  • Interface of fluids with different densities
  • Air – ocean interface
    – Ocean waves
  • Air – air interface
    – Atmospheric waves
  • Water – water interface
    – Internal waves

Types of Waves

Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 46

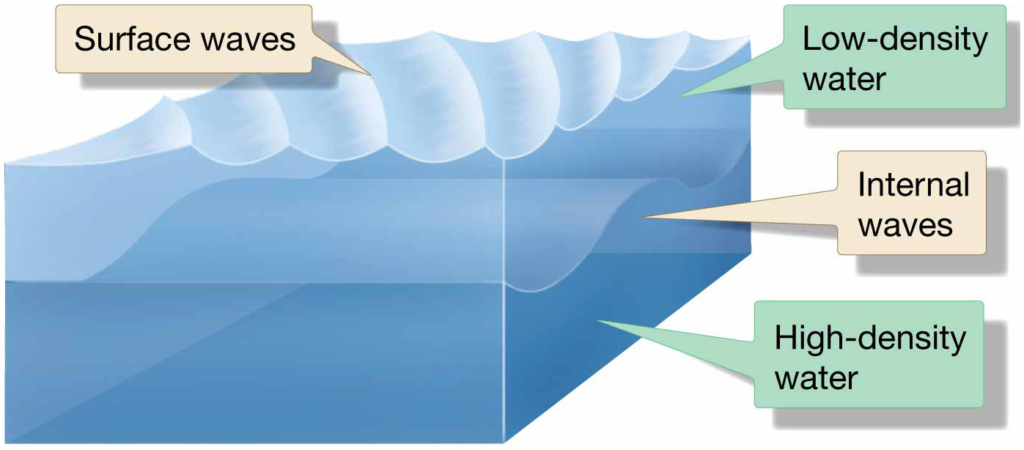

Internal Waves

  • Associated with pycnocline
  • Larger than surface waves
  • Caused by tides, turbidity currents, winds, ships
Internal Waves
Internal Waves

Wave Movement

All types of waves transmit energy—or propagate—by means of cyclic movement through matter. The medium itself (solid, liquid, or gas) does not actually travel in the direction of the wave that is passing through it. The particles in the medium simply oscillate—or cycle—back and forth, and up and down, transferring energy from one particle to another.

  • Waves transmit energy
  • Cyclic motion of particles in ocean
    – Particles may move
  • Up and down
  • Back and forth
  • Around and around

Different types of waves move in a variety of ways. Simple progressive waves are waves that oscillate uniformly and progress or travel without breaking. Progressive waves are divided into longitudinal, transverse, or a combination of the two motions, called orbital.

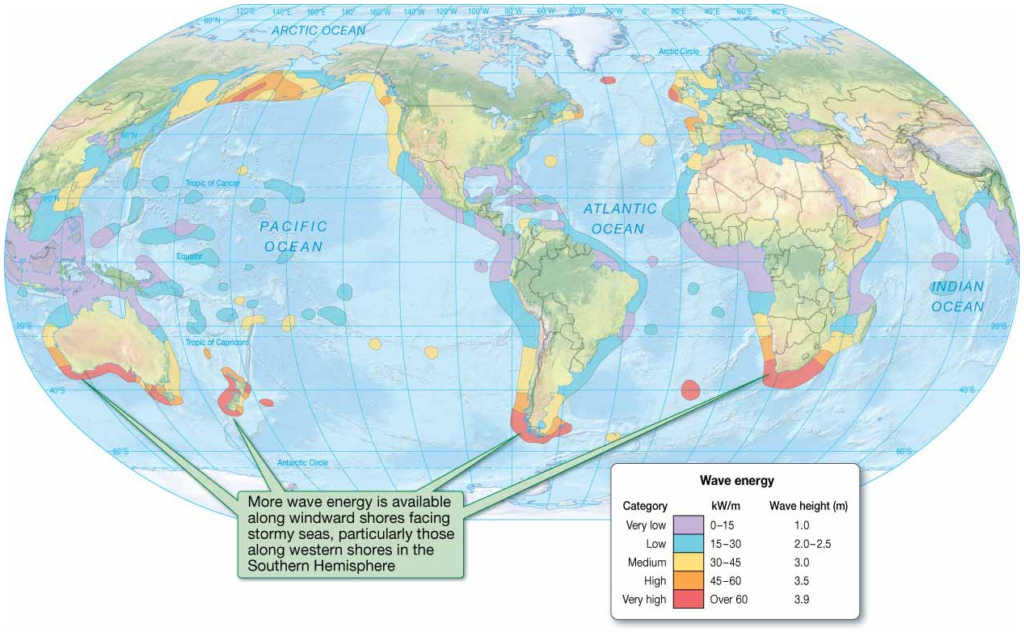

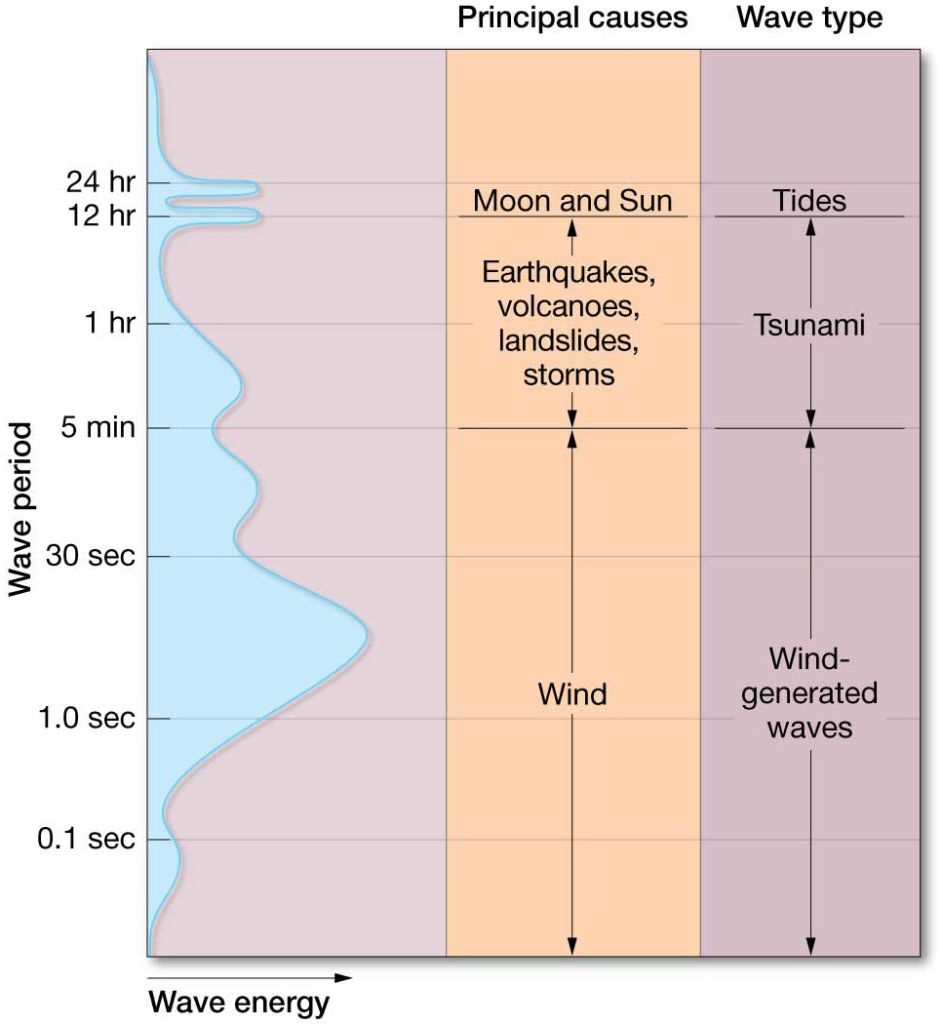

Global distribution of energy in ocean waves.
Graph showing the average annual energy, types, and principal
causes of waves in the world ocean.
Global distribution of energy in ocean waves. Graph showing the average annual energy, types, and principal causes of waves in the world ocean.

Progressive Waves

  • Progressive waves oscillate uniformly and progress without breaking
    – Longitudinal
    – Transverse
    – Orbital

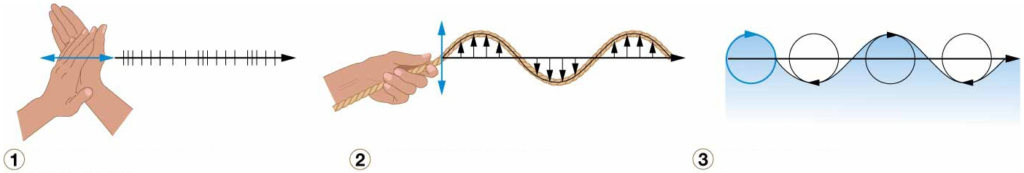

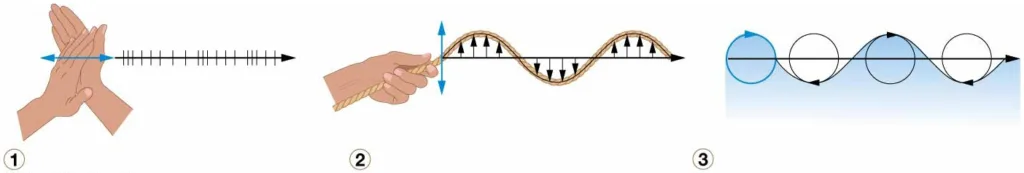

Types of progressive
waves. Diagrammatic view of the
three types of progressive waves.
Examples include 1 longitudinal
waves, 2 transverse waves, and
3 orbital waves.
Types of progressive waves. Diagrammatic view of the three types of progressive waves. Examples include 1 longitudinal
waves, 2 transverse waves, and 3 orbital waves.

Longitudinal Waves

In longitudinal waves (also known as push–pull waves), the particles that vibrate “push and pull” in the same direction that the wave is traveling, like a spring whose coils are alternately compressed and expanded. The shape of the wave (called a waveform) moves through the medium by compressing and decompressing as it goes. Sound, for instance, travels as longitudinal waves

  • Also called push-pull waves
  • Compress and decompress as they travel, like a coiled spring
READ ALSO  Chapter 7 Lecture: Ocean Circulation

Transverse Waves

In transverse waves (also known as side-to-side waves), energy travels at right angles to the direction of the vibrating particles. If one end of a rope is tied to a doorknob while the other end is moved up and down (or side to side) by hand, for example, a waveform progresses along the rope and energy is transmitted from the motion of the hand to the doorknob. The waveform moves up and down (or side to side) with the hand, but the motion is at right angles to the direction in which energy is transmitted (from the hand to the doorknob). Generally, transverse waves transmit energy only through solids, because the particles in solids are bound to one another strongly enough to transmit this kind of motion

  • Also called side-to-side waves
  • Energy travels at right angles to direction of moving particles.
  • Generally only transmit through solids, not liquids

Orbital Waves

Longitudinal and transverse waves are called body waves because they transfer energy through a body of matter. Ocean waves are considered surface waves because they travel along the interface between two different fluids (air and water). The
movement of particles in ocean waves involves components of both longitudinal and transverse waves, so particles move in circular orbits. Thus, waves at the ocean surface are orbital waves (also called interface waves).

  • Also called interface waves
  • Waves on ocean surface
READ ALSO  Chapter 4 Marine Sediments

Wave Terminology

As an idealized wave passes a permanent marker (such as a pier piling), a succession of high parts of the waves, called crests, alternate with low parts, called troughs. Halfway between the crests and the troughs is the still water level, or zero energy level. This is the level of the water if there were no waves. The wave height, designated by the symbol H, is the vertical distance between a crest and a trough. The horizontal distance between any two corresponding points on successive waveforms, such as from crest to crest or from trough to trough, is the wavelength, L.

Wave Steepness

Wave steepness is the ratio of wave height to wavelength:


Wave steepness = Wave height (H) / Wave length (L)

If the wave steepness exceeds 1/7, the wave breaks (spills forward) because the wave is too steep to support itself. A wave can break anytime the 1:7 ratio is exceeded, either along the shoreline or out at sea. This ratio also dictates the maximum height of a wave. For example, a wave 7 meters long can only be 1 meter high; if the wave is any higher than that, it will break.

Wave Period and Frequency

The time it takes one full wave—one wavelength—to pass a fixed position (such as a pier piling) is the wave period, T. Typical wave periods range between 6 and 16 seconds. The frequency (f) is defined as the number of wave crests passing a fixed location per unit of time and is the inverse of the period:


Frequency (f) = 1 / Period (T)
  • Crest
  • Trough
  • Still water level
    – Zero energy level
  • Wave height (H)
READ ALSO  Chapter 2 Plate Tectonics and the Ocean Floor

Orbital Wave Characteristics

  • Wave steepness = H/L
    – If wave steepness > 1/7, wave breaks
  • Wave period (T) = time for one wavelength to pass fixed point
  • Wave frequency = inverse of period or 1/T
  • Diameter of orbital motion decreases with depth of water.
  • Wave base = ½ L
  • Hardly any motion below wave base due to wave activity
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 47

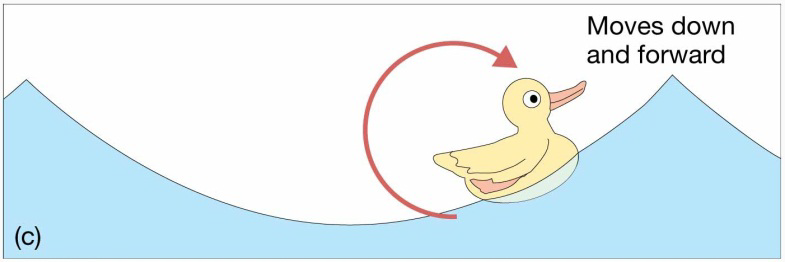

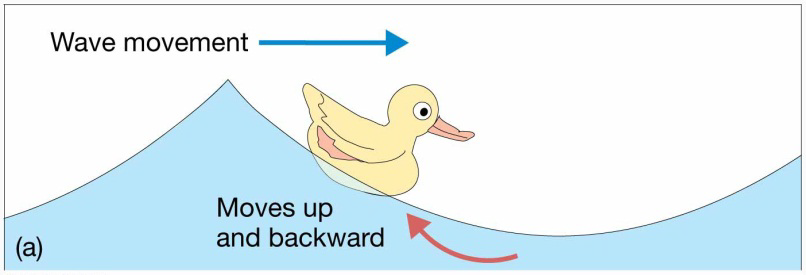

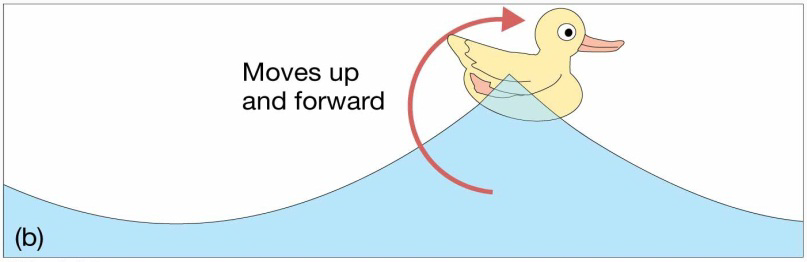

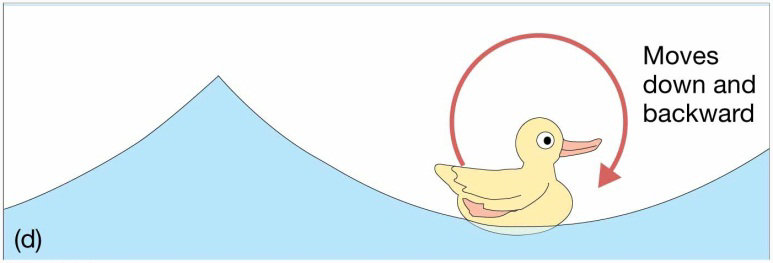

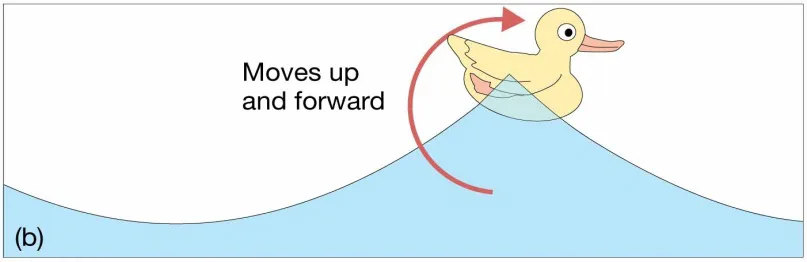

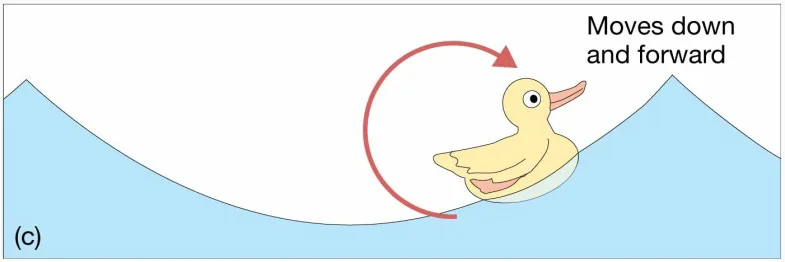

Circular Orbital Motion

The water itself doesn’t travel the entire distance, but the waveform does. As the wave travels, the water passes the energy along by moving in a circle. This movement is called circular orbital motion.

  • Wave particles move in a circle.
  • Waveform travels forward.
  • Wave energy advances.
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 48
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 49
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 50
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 51

Deep Water Waves

If the water depth (d) is greater than the wave base (L/2), the waves are called deep-water waves

  • Wave base – depth where orbital movement of water particles stops
  • If water depth is greater than wave base (>½L), wave isa deep water wave.
  • Lack of orbital motion at depth useful for floating runways and other structures

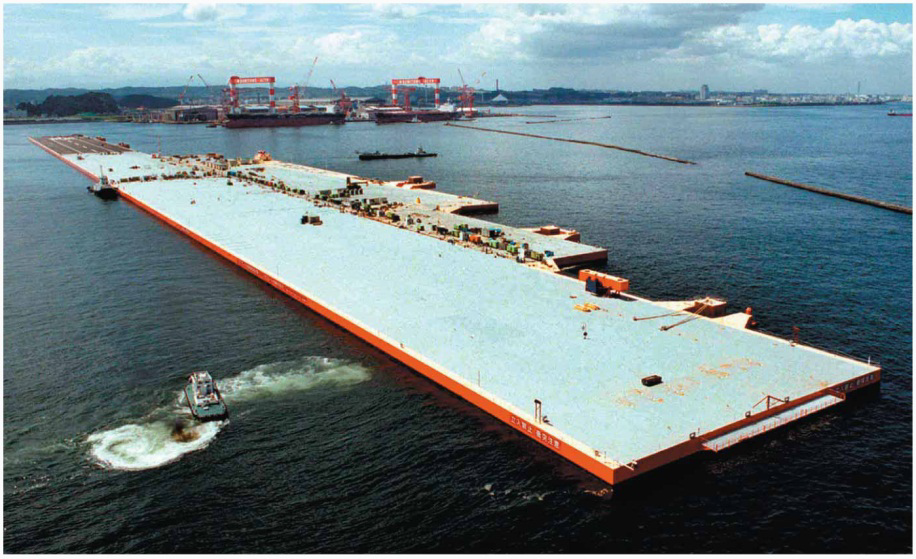

Floating airport runway in waters off
Japan.
Floating airport runway in waters off Japan.
  • All wind-generated waves in open ocean
  • Wave speed = wavelength (L)/period (T)
  • Speed called celerity (C)

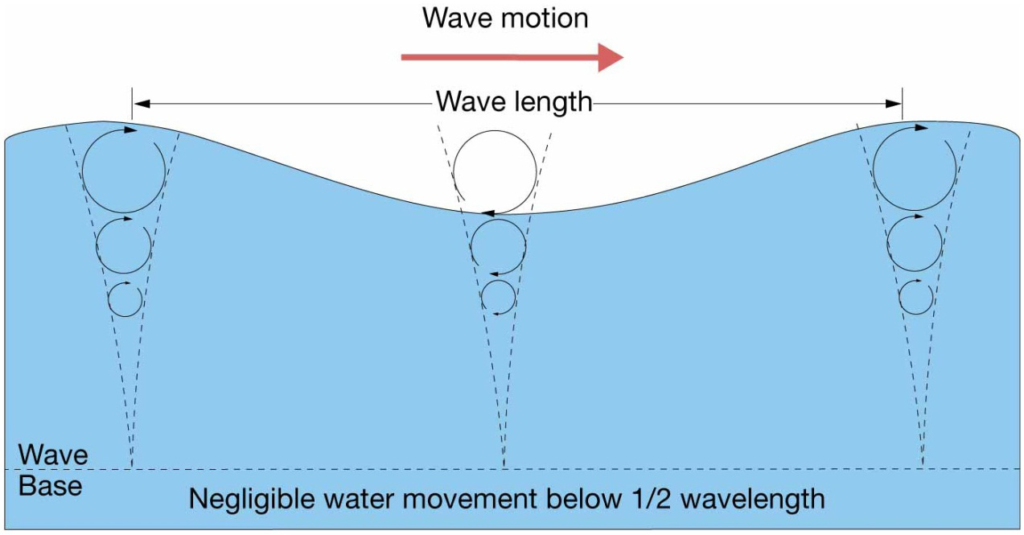

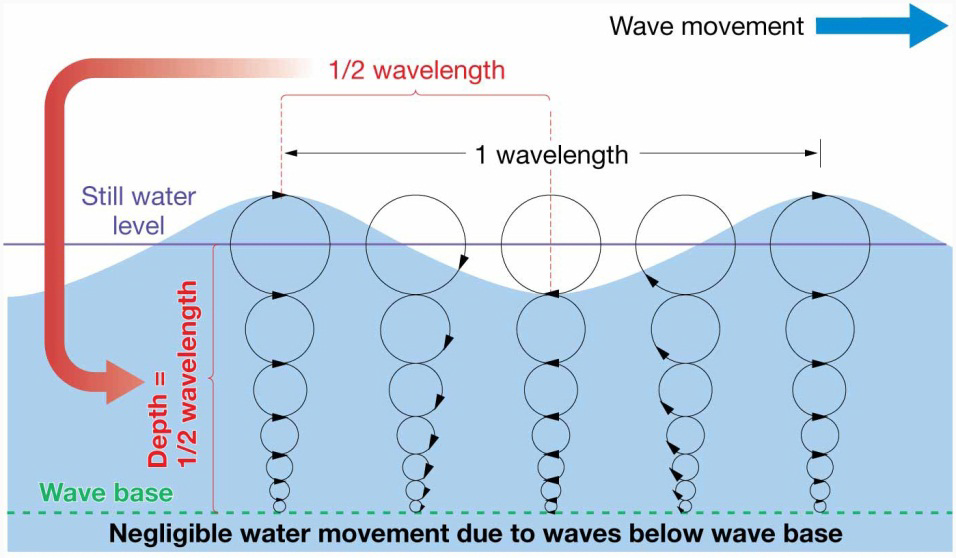

Deep-water wave: Circular orbits diminish in size with increasing depth. Water depth is greater than 1/2 wavelength.
Deep-water wave: Circular orbits diminish in size with increasing depth. Water depth is greater than 1/2 wavelength.

Speed of Deep Water Waves

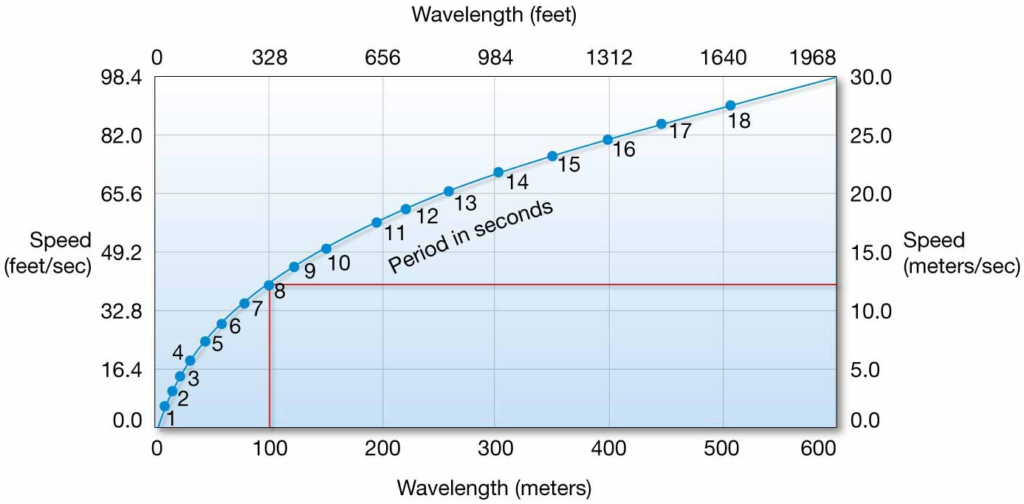

Determining the speed of deep-water
waves. Graph showing the relationships between wavelength
(horizontal axis), period (blue curve), and wave speed (vertical axis)
for deep-water waves.
Determining the speed of deep-water waves. Graph showing the relationships between wavelength (horizontal axis), period (blue curve), and wave speed (vertical axis) for deep-water waves.

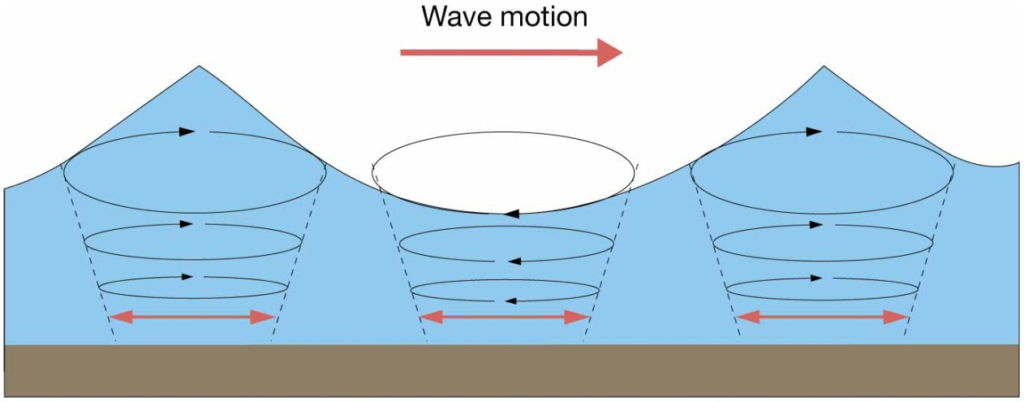

Shallow-Water Waves

Waves in which depth (d) is less than 1/20 of the wavelength (L/20) are called shallow-water waves, or long waves . Shallow-water waves are said to touch bottom or feel bottom because they touch the ocean floor, which interferes with the wave’s orbital motion.

  • Water depth (d) is less than 1/20 L
    – Water “feels” seafloor
  • C (meters/sec) = 3.13 √ d(meters) or
  • C (feet/sec) = 5.67 √d (feet)

Transitional Waves

  • Characteristics of both deep- and shallow-water waves
  • Celerity depends on both water depth and wavelength

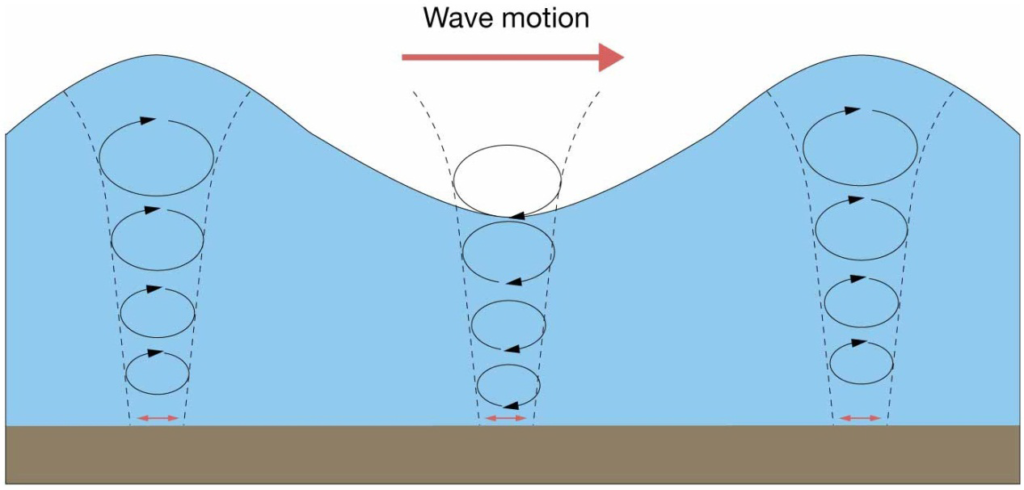

) Transitional wave: Intermediate between deep-water and shallow-water
waves. Water depth is greater than 1/20 wavelength, but less than 1/2
wavelength.
) Transitional wave: Intermediate between deep-water and shallow-water waves. Water depth is greater than 1/20 wavelength, but less than 1/2 wavelength.

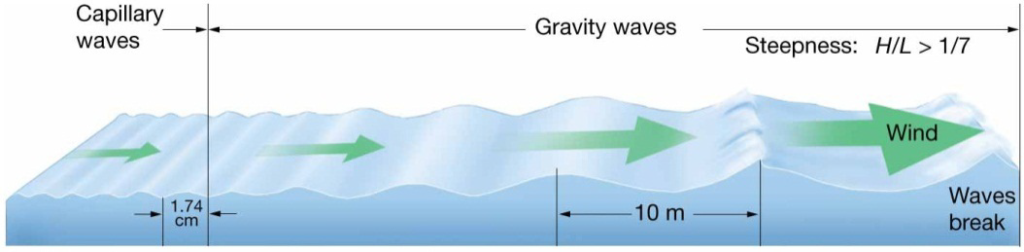

Wind-Generated Wave Development

The “lifecycle” of a wind-generated wave includes its origin in a windy region of the ocean, its movement across great expanses of open water without subsequent aid of wind, and its termination when it breaks and releases its energy, either in the open
ocean or against the shore.

  • Capillary waves : As the wind blows over the ocean surface, it pushes down on and parallel to the surface, causing water to pile up into small wavelets called capillary waves, which are more commonly called ripples.
  • Wind generates stress on sea surface
  • Gravity waves As capillary wave development increases, the sea surface takes on a rougher appearance. The water “catches” more of the wind, allowing the wind and ocean surface to interact more efficiently. As more energy is transferred to the ocean, gravity waves develop
    – Increasing wave energy
  • Capillary Waves
    – Ripples
    – Wind generates initial stress on sea surface
  • Gravity Waves
    – More energy transferred to ocean
    – Trochoidal waveform as crests become pointed
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 52

Sea

The area where wind-driven waves are generated is called the sea, or sea area.

  • Sea
    – Where wind-driven waves are generated
    – Also called sea area

Factors Affecting Wave Energy

  • Wind speed
  • Wind duration
  • Fetch – distance over which wind blows

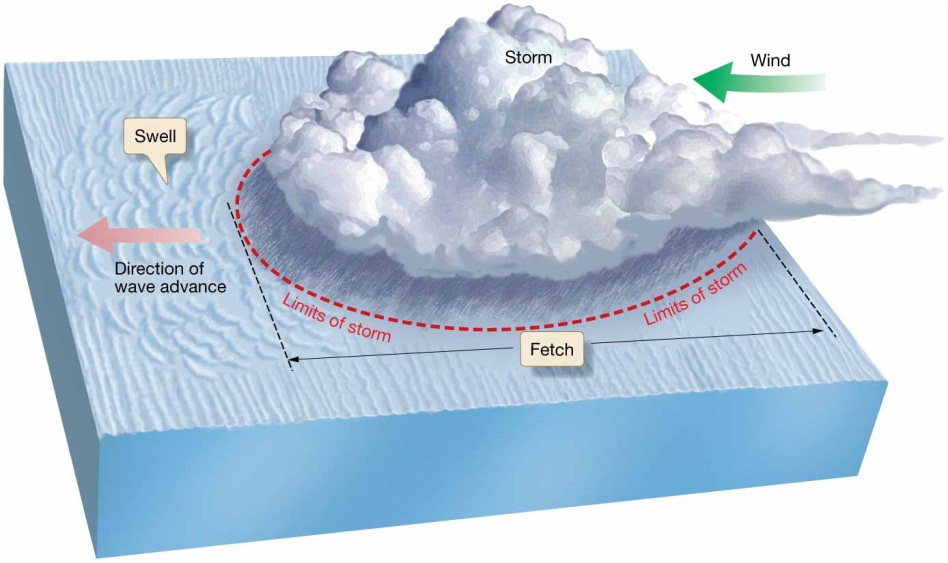

Factors that contribute to creating large waves
in the “sea” and the origination of swell.
Factors that contribute to creating large waves in the “sea” and the origination of swell.

Wave Height

  • Directly related to wave energy
  • Wave heights usually less than 2 meters (6.6 feet)
  • Breakers called whitecaps form when wave reaches critical steepness.
  • Beaufort Wind Scale describes appearance of sea surface.

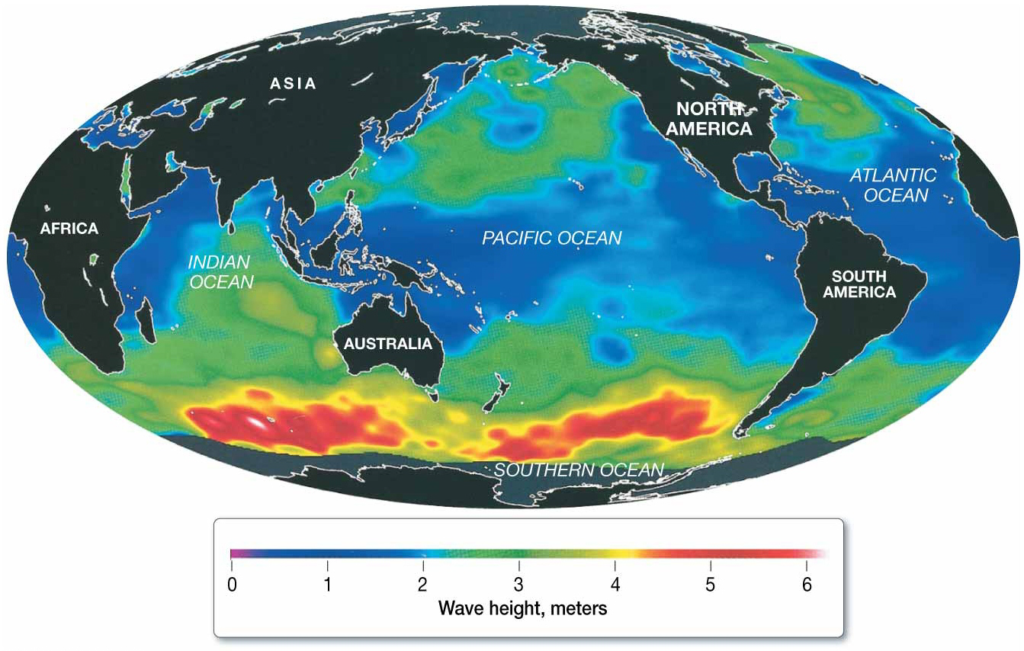

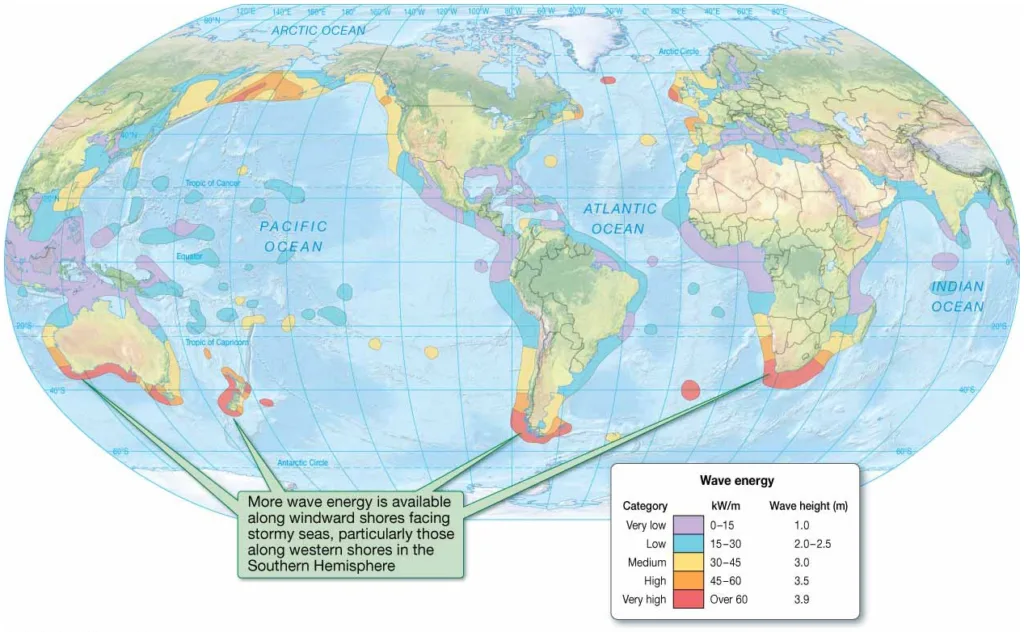

Global Wave Heights

Global Wave Heights
Global Wave Heights

Beaufort Wind Scale

Beaufort wind scale and the state of the sea
Beaufort numberDescriptive termWind speed  Appearance of the sea
km/hrmi/hr
0Calm<1<1Like a mirror
1Light air1–51–3Ripples with the appearance of scales, no foam crests
2Light breeze6–114–7Small wavelets; crests of glassy appearance, no breaking
3Gentle breeze12–198–12Large wavelets; crests begin to break, scattered whitecaps
4Moderate breeze20–2813–18Small waves, becoming longer; numerous whitecaps
5Fresh breeze29–3819–24Moderate waves, taking longer form; many whitecaps, some spray
6Strong breeze39–4925–31Large waves begin to form, whitecaps everywhere, more spray
7Near gale50–6132–38Sea heaps up and white foam from breaking waves begins to be blown in streaks
8Gale62–7439–46Moderately high waves of greater length, edges of crests begin to break into spindrift, foam is blown in well-marked streaks
9Strong gale75–8847–54High waves, dense streaks of foam and sea begins to roll, spray may affect visibility
10Storm89–10255–63Very high waves with overhanging crests; foam is blown in dense white streaks, causing the sea to appear white; the rolling of the sea becomes heavy; visibility reduced
11Violent storm103–11764–72Exceptionally high waves (small and medium-sized ships might for a time be lost from view behind the waves), the sea is covered with white patches of foam, everywhere the edges of the wave crests are blown into froth, visibility further reduced
12Hurricane118+73+The air is filled with foam and spray, sea completely white with driving spray, visibility greatly reduced

Maximum Wave Height

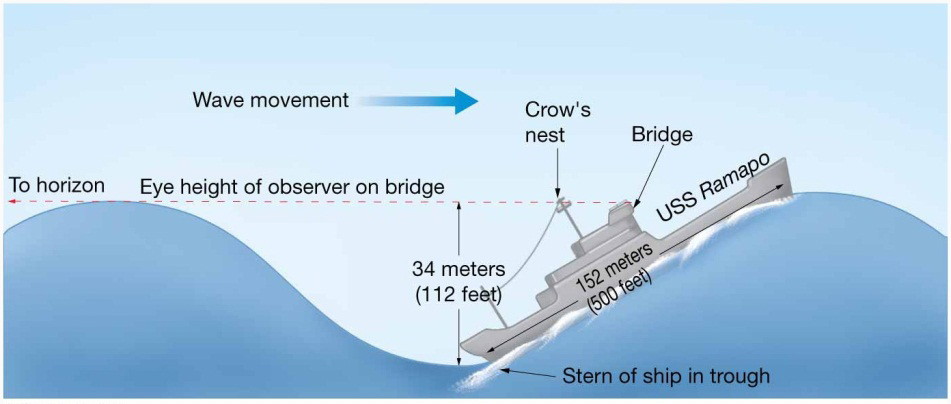

  • USS Ramapo (1933): 152-meters (500 feet) long ship caught in Pacific typhoon
  • Waves 34 meters (112 feet) high
  • Previously thought waves could not exceed 60 feet
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 53

Wave Damage

  • USS Ramapo undamaged
  • Other craft not as lucky
  • Ships damaged or disappear annually due to high storm waves
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 54

Wave Energy

  • Fully developed sea
    – Equilibrium condition
    – Waves can grow no further
  • Swell
    – Uniform, symmetrical waves that travel outward from storm area
    – Long crests
    – Transport energy long distances

Fully Developed Sea

CONDITIONS NECESSARY TO PRODUCE A FULLY DEVELOPED SEA AT VARIOUS WIND SPEEDS AND THE CHARACTERISTICS OF THE RESULTING WAVES
These conditions . . .. . . produce these waves
Wind speed in km/hr (mi/hr)Fetch in km (mi)Duration in hoursAverage height in m (ft)Average wave- length in m (ft)Average period in secondsHighest 10% of waves in m (ft)
20 (12)24 (15)2.80.3 (1.0)10.6 (34.8)3.20.8 (2.5)
30 (19)77 (48)7.00.9 (2.9)22.2 (72.8)4.62.1 (6.9)
40 (25)176 (109)11.51.8 (5.9)39.7 (130.2)6.23.9 (12.8)
50 (31)380 (236)18.53.2 (10.5)61.8 (202.7)7.76.8 (22.3)
60 (37)660 (409)27.55.1 (16.7)89.2 (292.6)9.110.5 (34.4)
70 (43)1093 (678)37.57.4 (24.3)121.4 (398.2)10.815.3 (50.2)
80 (50)1682 (1043)50.010.3 (33.8)158.6 (520.2)12.421.4 (70.2)
90 (56)2446 (1517)65.213.9 (45.6)201.6 (661.2)13.928.4 (93.2)

Swells

As waves generated in a sea area move toward its margins, wind speeds diminish and the waves eventually move faster than the wind. When this occurs, wave steepness decreases and waves become long-crested waves called swells (swellan = swollen), which are uniform, symmetrical waves that have traveled out of their area of origination.

  • Longer wavelength waves travel faster and outdistance other waves.
    – Wave train – a group of waves with similar characteristics
    – Wave dispersion – sorting of waves by wavelengths
    – Decay distance – distance over which waves change from choppy sea to uniform swell
  • Wave train speed is ½ speed of individual wave.

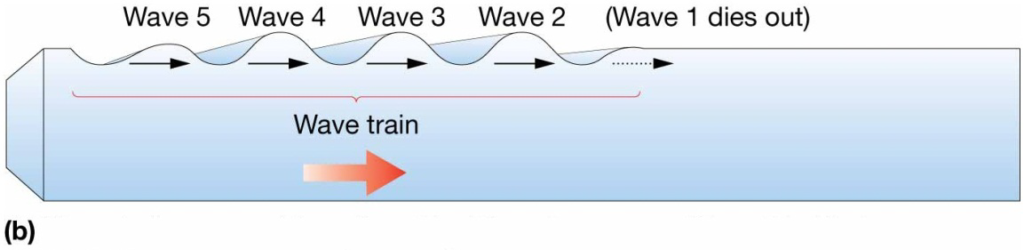

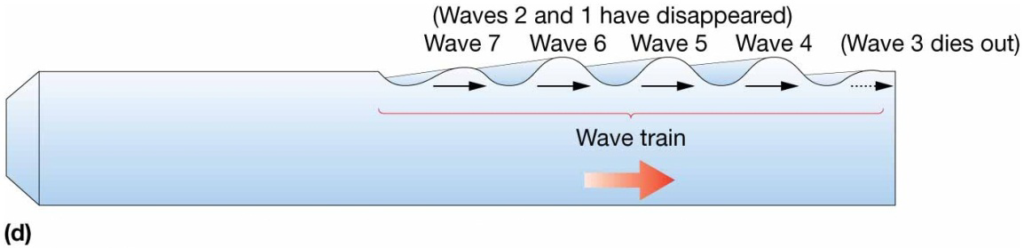

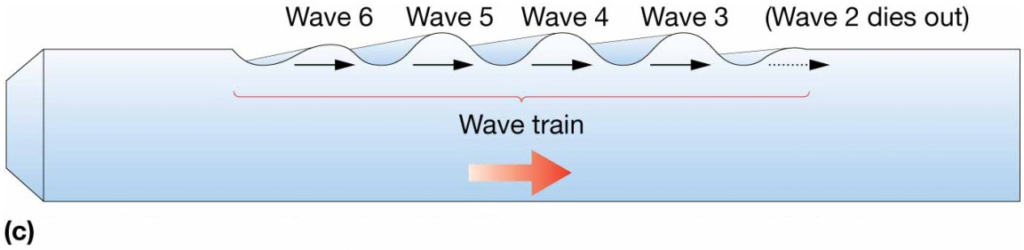

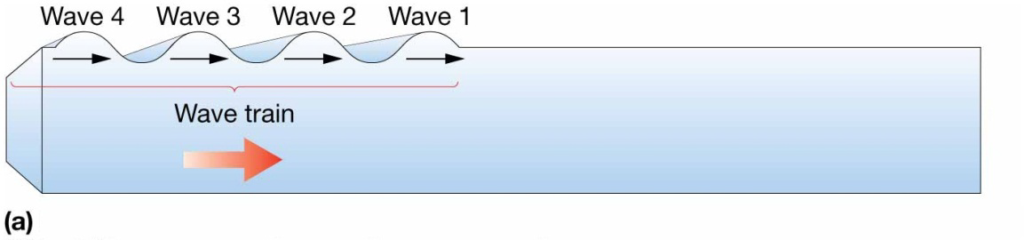

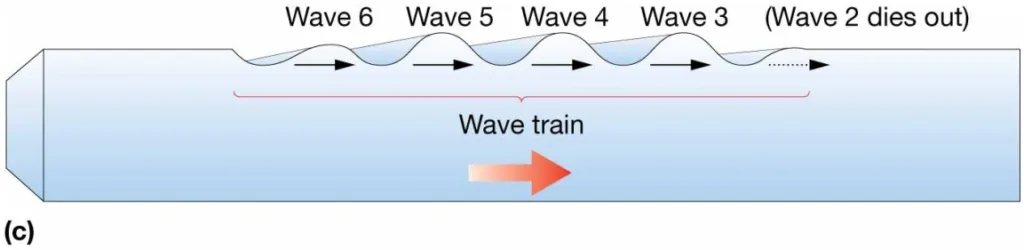

Wave Train Movement

Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 55
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 56
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 57
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 58

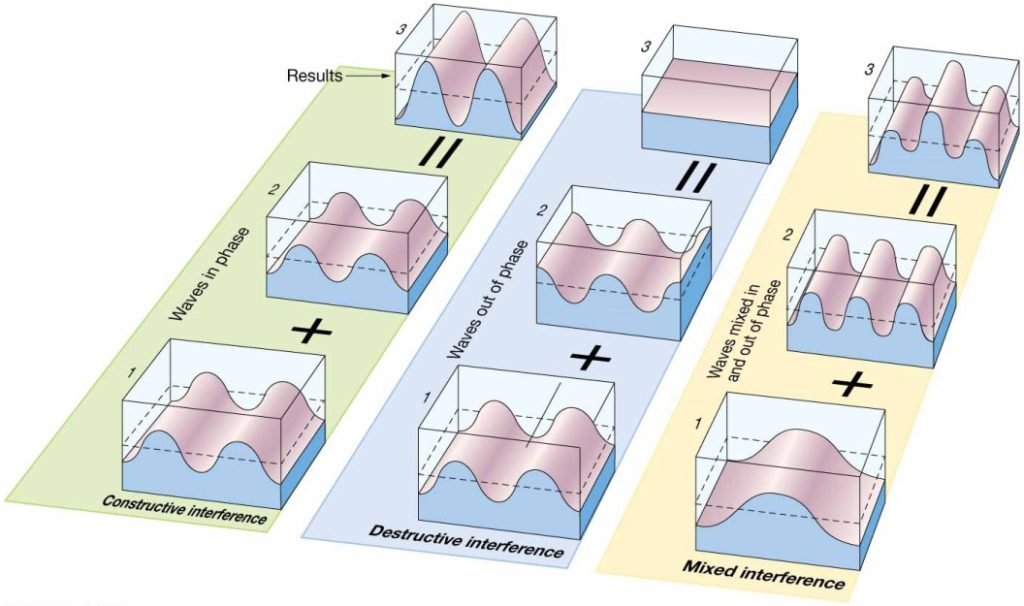

Wave Interference Patterns

When swells from different storms run together, the waves clash, or interfere with one another, giving rise to interference patterns. An interference pattern produced when two or more wave systems collide is the sum of the disturbance that each wave would have produced individually.

  • Collision of two or more wave systems
  • Constructive interference
    – In-phase wave trains with about the same wavelengths
  • Destructive interference
    – Out-of-phase wave trains with about the same wavelengths
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 59

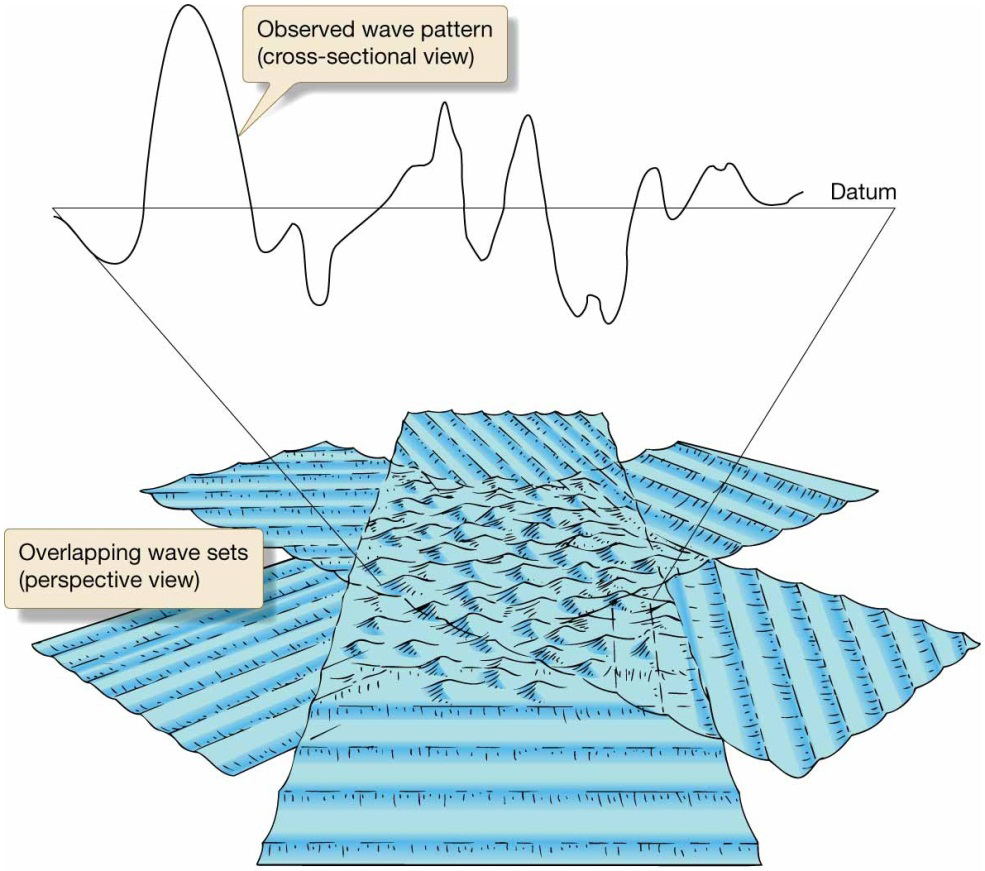

  • Mixed interference
    – Two swells with different wavelengths and different wave heights
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 60

Rogue Waves

  • Massive, spontaneous, solitary ocean waves
  • Reach abnormal heights, enormous destructive power
  • Luxury liner Michelangelo damaged in 1966
  • Basis of The Perfect Storm
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 61

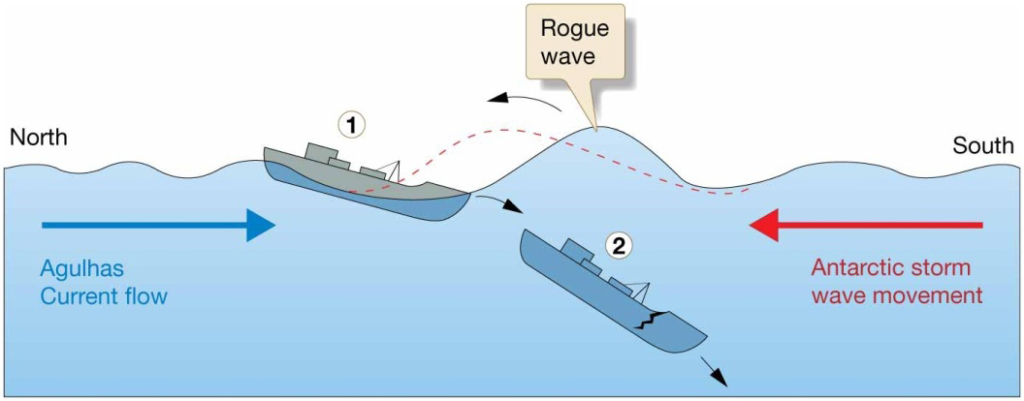

  • Difficult to forecast
  • Occur more near weather fronts and downwind of islands
  • Strong ocean currents amplify opposing swells
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 62

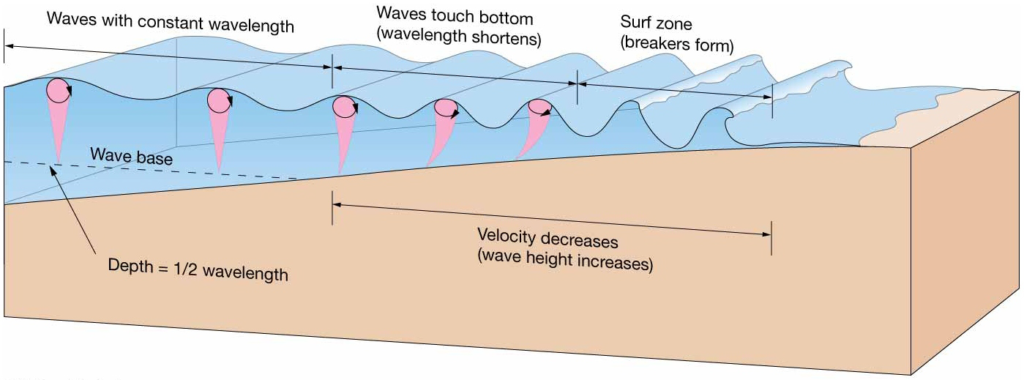

Waves in Surf Zone

  • Surf zone – zone of breaking waves near shore
  • Shoaling water – water becoming gradually more shallow
  • When deep water waves encounter shoaling water less than ½ their wavelength, they become transitional waves.

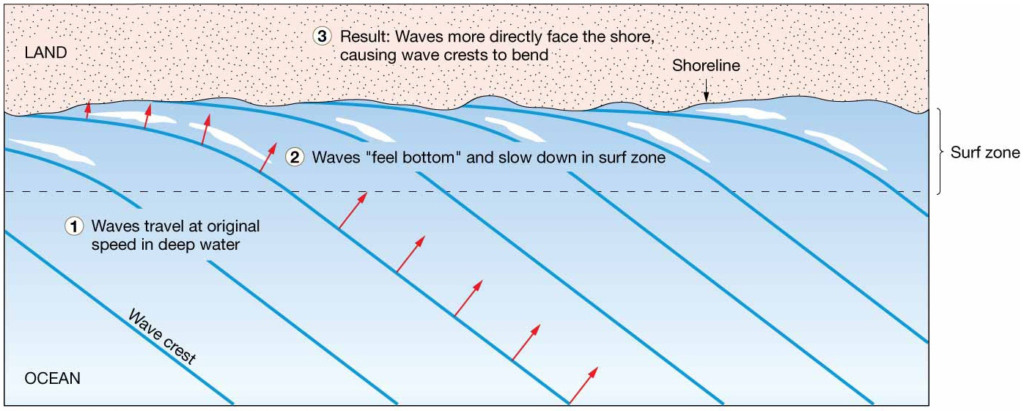

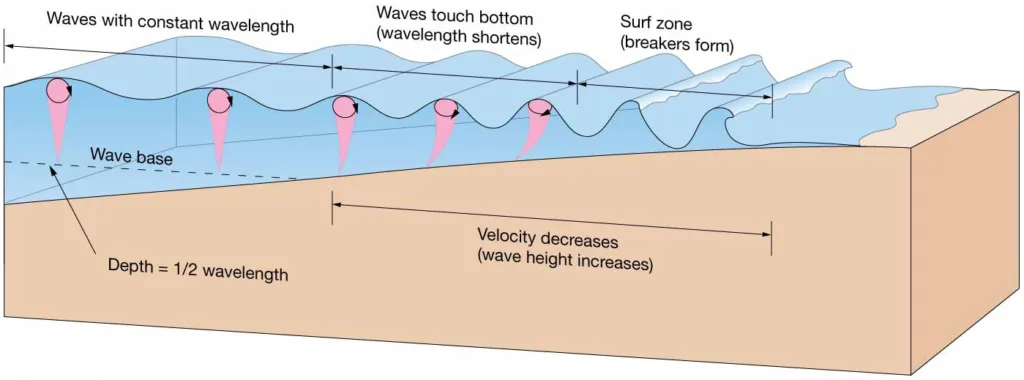

Waves Approaching Shore

  • As a deep-water wave becomes a shallowwater wave:
    – Wave speed decreases
    – Wavelength decreases
    – Wave height increases
    – Wave steepness (height/wavelength) increases
    – When steepness > 1/7, wave breaks
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 63

Breakers in Surf Zone

  • Surf as swell from distant storms
    – Waves break close to shore
    – Uniform breakers
  • Surf generated by local winds
    – Choppy, high energy, unstable water
  • Shallow water waves

Three Types of Breakers

  • Spilling
  • Plunging
  • Surging

Spilling Breakers

  • Gently sloping sea floor
  • Wave energy expended over longer distance
  • Water slides down front slope of wave
Spilling breaker, resulting from a gradual beach slope
Spilling breaker, resulting from a gradual beach slope

Plunging Breakers

  • Moderately steep sea floor
  • Wave energy expended over shorter distance
  • Best for board surfers
  • Curling wave crest
 Plunging breaker, resulting from a steep beach slope; these  are the best waves for surfing.
Plunging breaker, resulting from a steep beach slope; these are the best waves for surfing.

Surging Breakers

  • Steepest sea floor
  • Energy spread over shortest distance
  • Best for body surfing
  • Waves break on the shore
 Surging breaker, resulting from an abrupt beach slope
Surging breaker, resulting from an abrupt beach slope

Surfing

  • Like riding a gravity-operated water sled
  • Balance of gravity and buoyancy
  • Skilled surfers position board on wave front
    – Can achieve speeds up to 40 km/hour (25 miles/hour)

Wave Refraction

  • Waves rarely approach shore at a perfect 90-degree angle.
  • As waves approach shore, they bend so wave crests are nearly parallel to shore.
  • Wave speed is proportional to the depth of water (shallow-water wave).
  • Different segments of the wave crest travel at different speeds.
Wave Refraction
Wave Refraction
  • Wave energy unevenly distributed on shore
  • Orthogonal lines or wave rays – drawn perpendicular to wave crests
    – More energy released on headlands
    – Energy more dissipated in bays

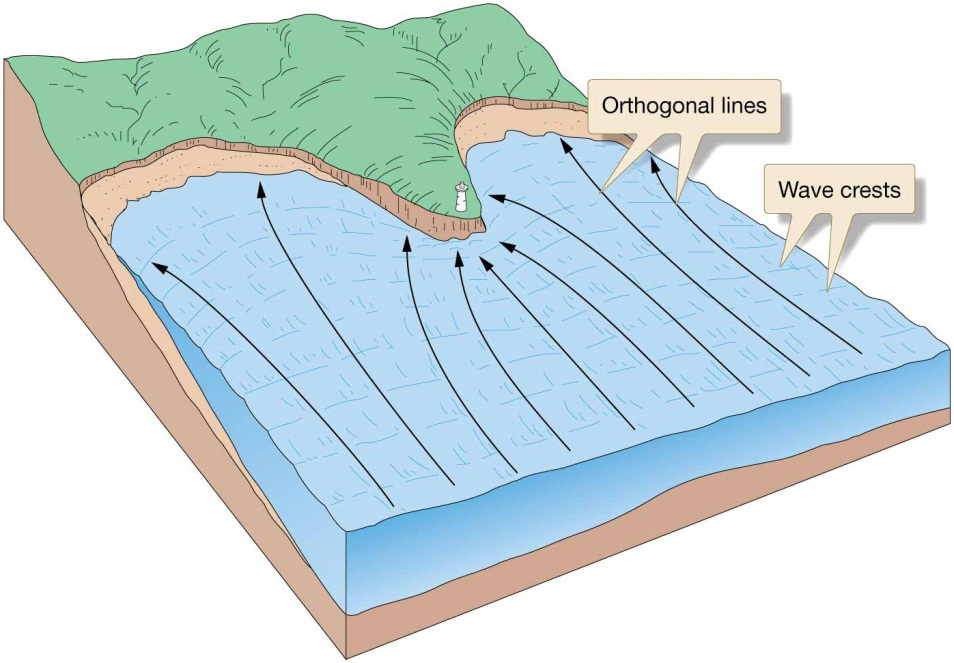

Perspective view of wave refraction along an irregular shoreline
Perspective view of wave refraction along an irregular shoreline
  • Gradually erodes headlands
  • Sediment accumulates in bays

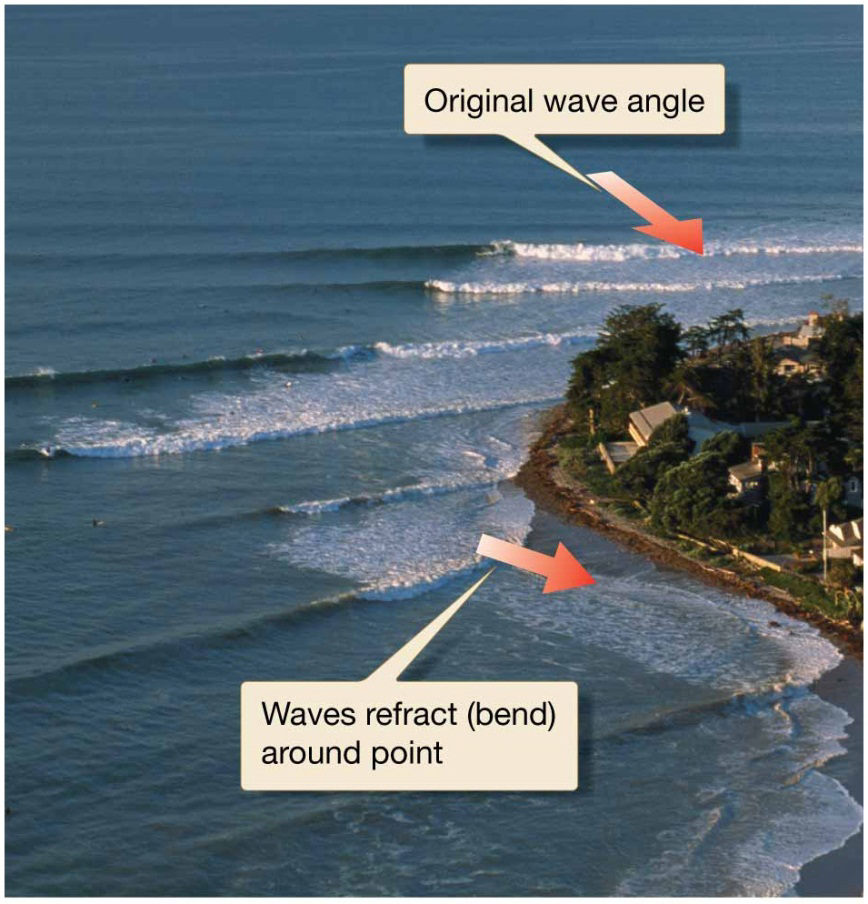

Photo of wave refraction at Rincon Point, California (looking west).
Photo of wave refraction at Rincon Point, California (looking west).

Wave Reflection

  • Waves and wave energy bounced back from barrier
  • Reflected wave can interfere with next incoming wave.
  • With constructive interference, can create dangerous plunging breakers

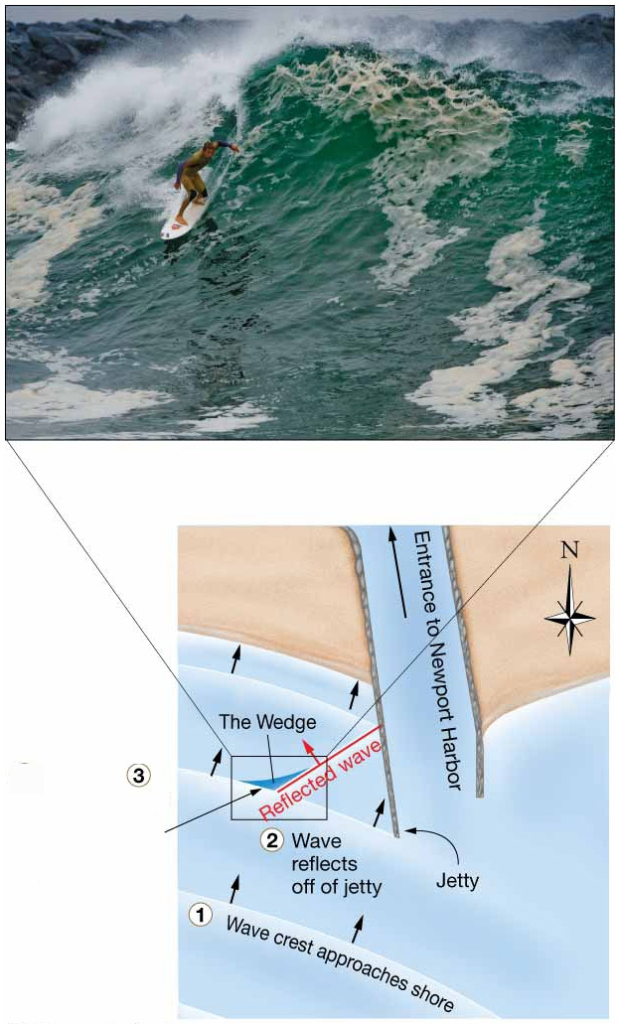

 Wave reflection and constructive interference
at The Wedge, Newport Harbor, California
Wave reflection and constructive interference at The Wedge, Newport Harbor, California

Standing Waves

  • Two waves with same wavelength moving in opposite directions
  • Water particles move vertically and horizontally.
  • Water sloshes back and forth.
  • Nodes have no vertical movement
  • Antinodes are alternating crests and troughs.

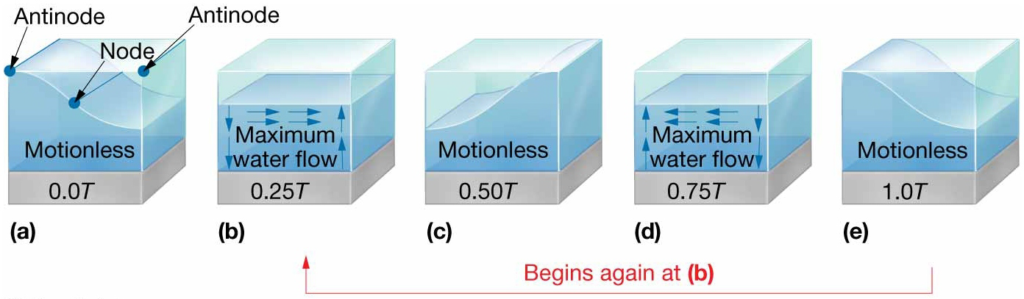

Sequence of motion in a standing wave. I
Sequence of motion in a standing wave.

Tsunami

  • Seismic sea waves
  • Originate from sudden sea floor topography changes
    – Earthquakes – most common cause
    – Underwater landslides
    – Underwater volcano collapse
    – Underwater volcanic eruption
    – Meteorite impact – splash waves

Tsunami Characteristics

  • Long wavelengths (> 200 km or 125 miles)
    • Behaves as a shallow-water wave
      – Encompasses entire water column, regardless of ocean depth
      – Can pass undetected under boats in open ocean
  • Speed proportional to water depth
    – Very fast in open ocean

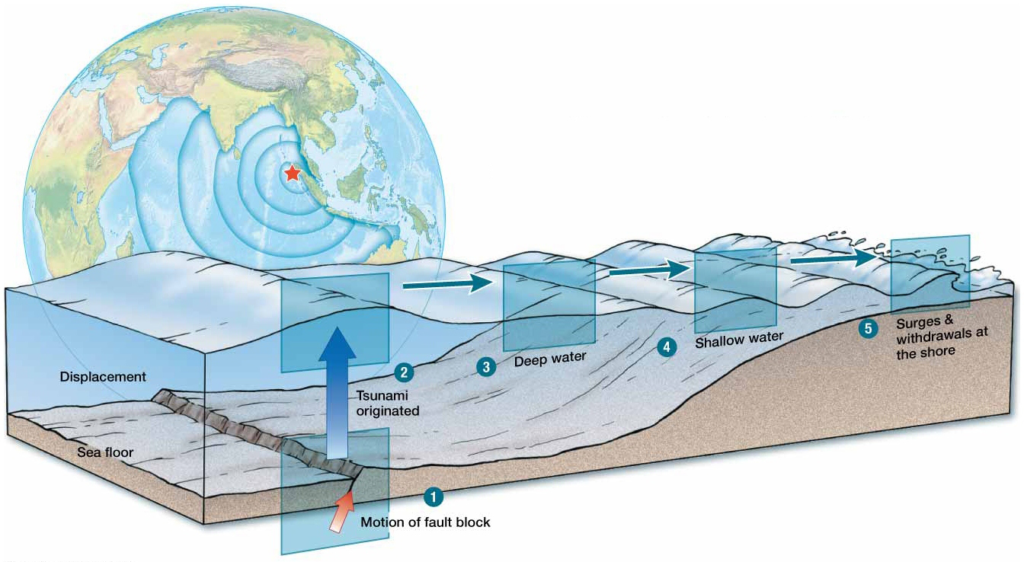

 How a tsunami is generated, propagated, and surges to extreme heights at the shore.
How a tsunami is generated, propagated, and surges to extreme heights at the shore.

Tsunami Destruction

  • Sea level can rise up to 40 meters (131 feet) when a tsunami reaches shore.

Tsunami

  • Most occur in Pacific Ocean
    – More earthquakes and volcanic eruptions
  • Damaging to coastal areas
  • Loss of human lives
Tsunami damage in Hilo, Hawaii.
Flattened parking meters in Hilo, Hawaii, caused by the 1946 tsunami
that resulted in more than $25 million in damage and 159 deaths.
Tsunami damage in Hilo, Hawaii. Flattened parking meters in Hilo, Hawaii, caused by the 1946 tsunami that resulted in more than $25 million in damage and 159 deaths.

Historical Tsunami

  • Krakatau – 1883
    – Indonesian volcanic eruption
  • Scotch Cap, Alaska/Hilo, Hawaii – 1946
    – Magnitude 7.3 earthquake in Aleutian Trench
  • Papua New Guinea – 1998
    – Pacific Ring of Fire magnitude 7.1 earthquake

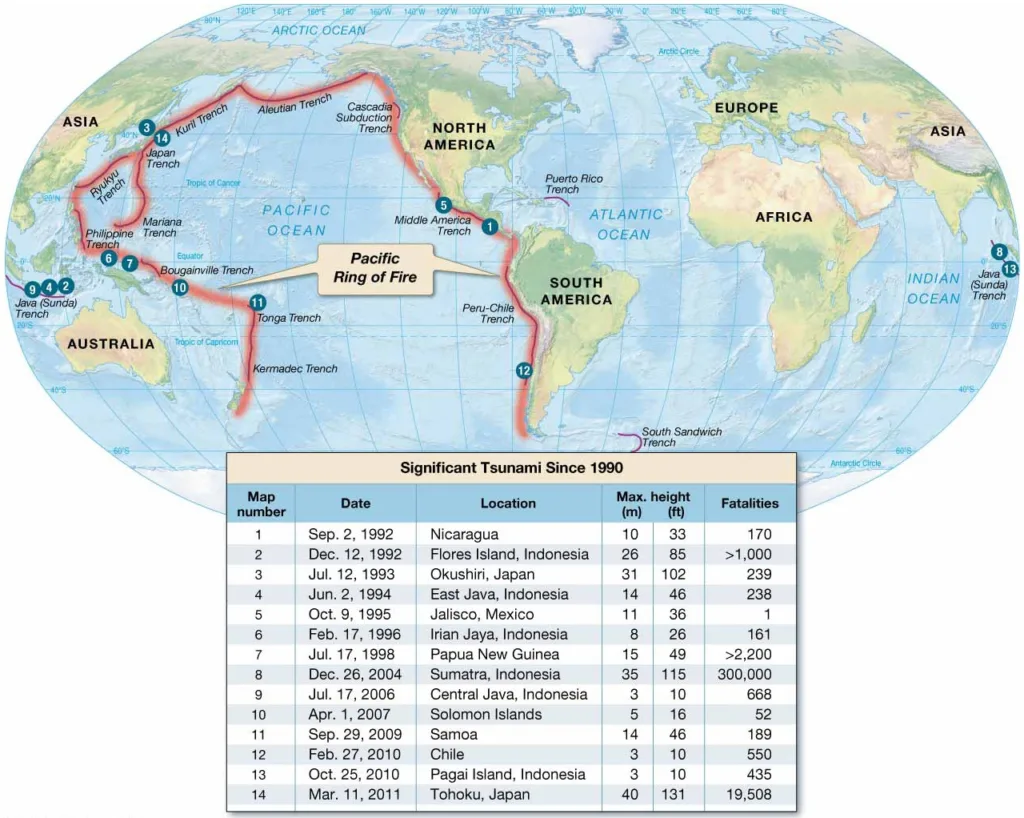

Historical Large Tsunami

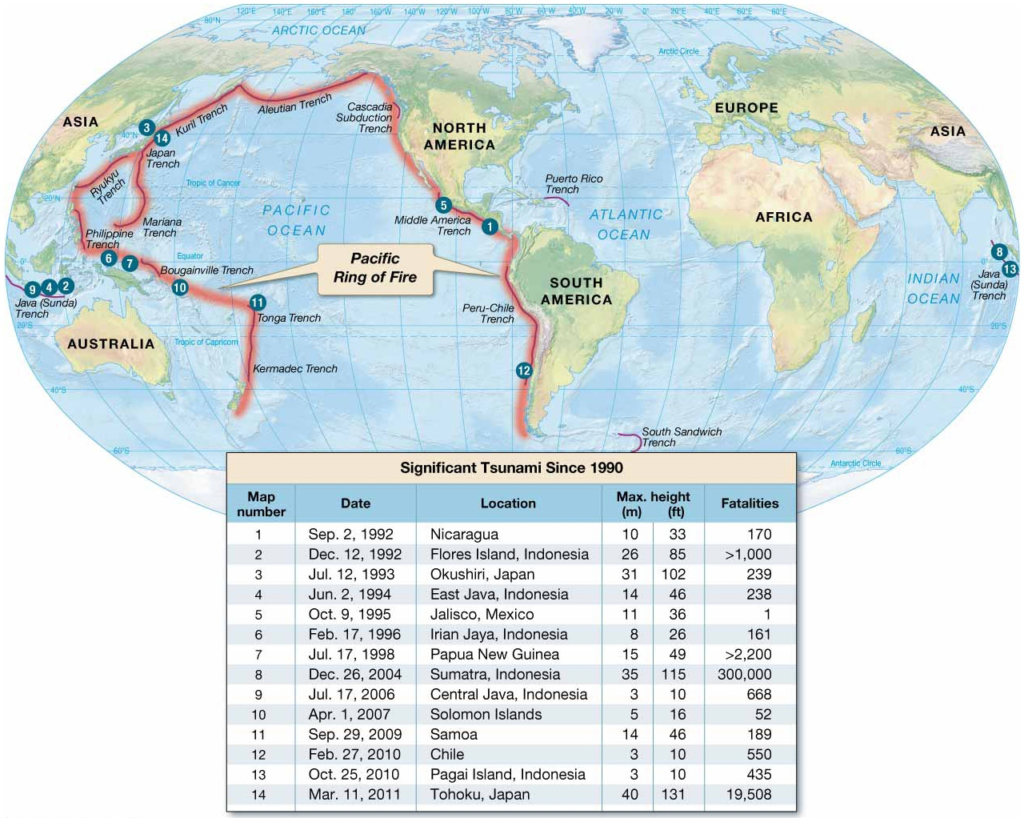

Global locations and corresponding table showing significant
tsunami (those with large tsunami height and/or responsible for
a large number of fatalities) since 1990. Tsunami have claimed
more than 300,000 lives worldwide since 1990. These killer waves
are most often generated by earthquakes along colliding tectonic
plates of the Pacific Rim, although the most deadly tsunami in
history was the 2004 Indian Ocean Tsunami (number 8). Locations
of ocean trenches are shown by dark red lines; Pacific Ring of Fire
is shown by red shading.
Significant tsunami since 1990.
Global locations and corresponding table showing significant tsunami (those with large tsunami height and/or responsible for
a large number of fatalities) since 1990. Tsunami have claimed more than 300,000 lives worldwide since 1990. These killer waves are most often generated by earthquakes along colliding tectonic plates of the Pacific Rim, although the most deadly tsunami in history was the 2004 Indian Ocean Tsunami (number 8). Locations of ocean trenches are shown by dark red lines; Pacific Ring of Fire is shown by red shading.

Indian Ocean Tsunami

  • December 26, 2004
    – Magnitude 9.2 earthquake off coast of Sumatra
    – 1200 km seafloor displaced between two tectonic plates
    – Deadliest tsunami in history
    – Coastal villages completely wiped out
  • Detected by Jason-1 satellite
  • Traveled more than 5000 km (3000 mi)
  • Wavelength about 500 km (300 mi)
  • 230,000–300,000 people in 11 countries killed
  • Lack of warning system in Indian Ocean

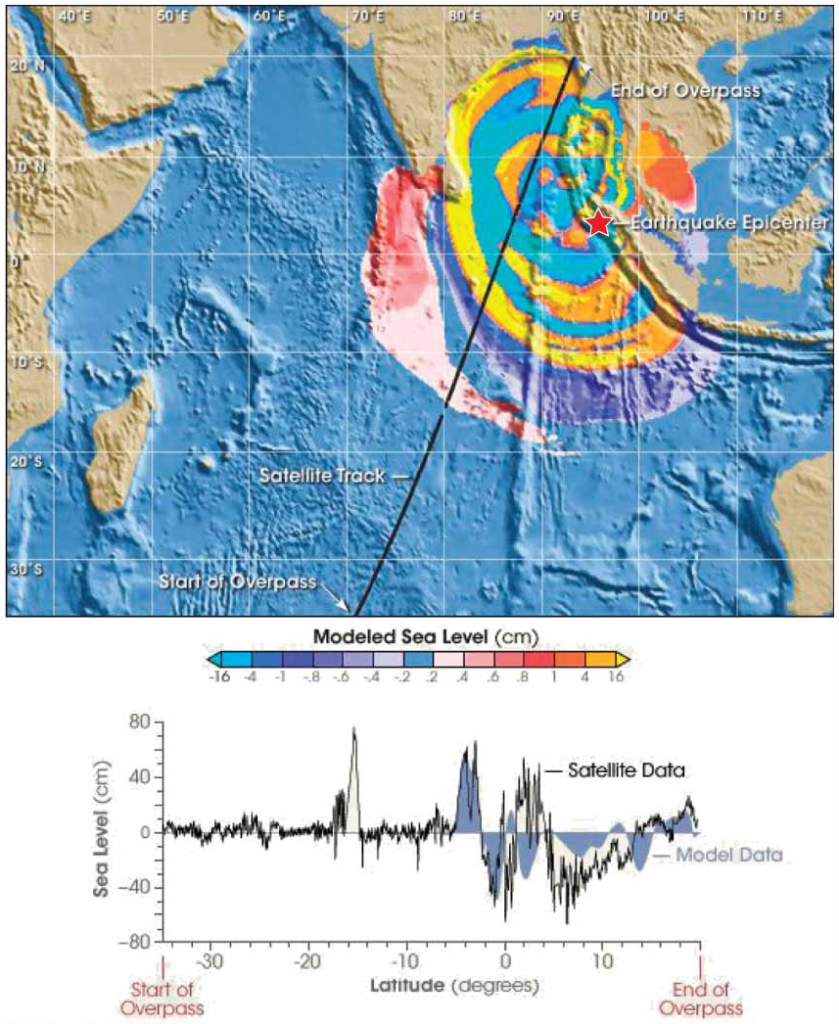

Jason-1 satellite detects the Indian Ocean Tsunami.
The Indian Ocean Tsunami was initiated by a large earthquake offshore
Sumatra on December 26, 2004 (red star). By a fortuitous circumstance, the
Jason-1 satellite passed over the Indian Ocean (black line) two hours after the
tsunami was generated. Its radar altimeter detected the crests and troughs of
the tsunami (colors), which showed a wave height of about 1 meter (3.3 feet)
in the open ocean. The graph of the satellite’s overpass (below) shows the
difference between the measured sea level from satellite data (black line) and
the modeled wave height (blue curve).
Jason-1 satellite detects the Indian Ocean Tsunami.
The Indian Ocean Tsunami was initiated by a large earthquake offshore Sumatra on December 26, 2004 (red star). By a fortuitous circumstance, the Jason-1 satellite passed over the Indian Ocean (black line) two hours after the tsunami was generated. Its radar altimeter detected the crests and troughs of the tsunami (colors), which showed a wave height of about 1 meter (3.3 feet) in the open ocean. The graph of the satellite’s overpass (below) shows the difference between the measured sea level from satellite data (black line) and the modeled wave height (blue curve).

Japan Tsunami

  • March 11, 2011 – Tohoku Earthquake
    – Magnitude 9.0 earthquake in Japan Trench
    – Felt throughout Pacific basin
    – Most expensive tsunami in history
  • Initial surge 15 meters (49 ft)
    – Topped harbor-protecting tsunami walls
    – Amplified by local topography
  • Killed 19,508 people
  • Disrupted power at Fukushima Daiichi nuclear power plant
    – Reactors exploded
    – Radioactivity problem initiated

Tsunami Warning System

  • Pacific Tsunami Warning Center (PTWC) – Honolulu, HI – Uses seismic wave recordings to forecast tsunami
  • Deep Ocean Assessment and Reporting of Tsunami (DART)
    – System of buoys
    – Detects pulse of tsunami passing

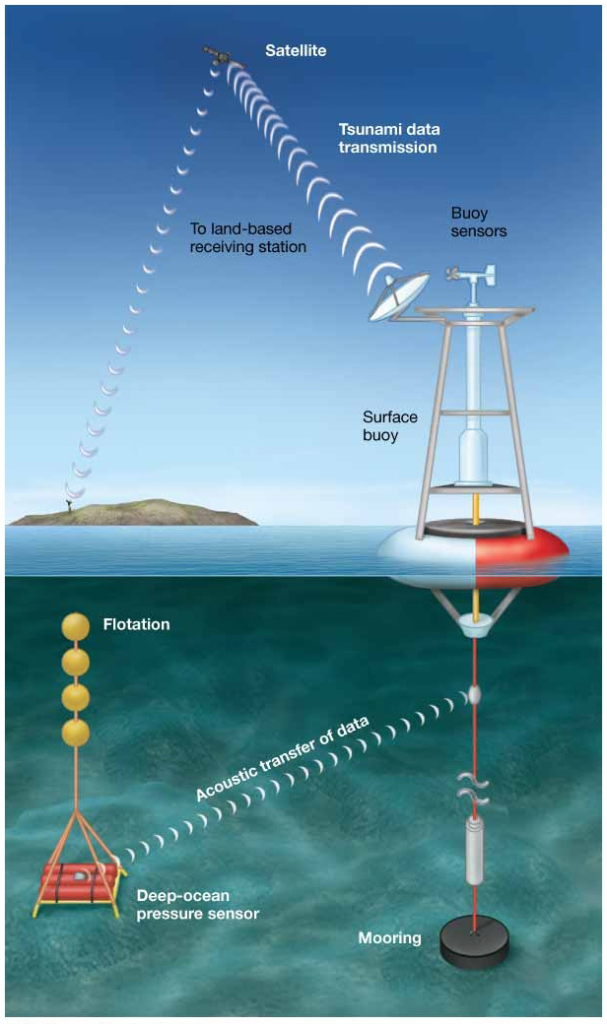

Deep-ocean Assessment and Reporting of
Tsunamis (DART). The DART system consists of a deep-ocean
pressure sensor that can detect a tsunami passing above. The
pressure sensor relays information to a buoy at the surface that
transmits the data via satellite, allowing oceanographers to detect
the passage of a tsunami in the open ocean.
Deep-ocean Assessment and Reporting of Tsunamis (DART).
The DART system consists of a deep-ocean pressure sensor that can detect a tsunami passing above. The pressure sensor relays information to a buoy at the surface that transmits the data via satellite, allowing oceanographers to detect the passage of a tsunami in the open ocean.

Tsunami Watches and Warnings

  • Tsunami Watch
    • issued when potential for tsunami exists
  • Tsunami Warning
    • unusual wave activity verified
      – Evacuate people
      – Move ships from harbors
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 64

Waves as Source of Energy

  • Lots of energy associated with waves
  • Mostly with large storm waves
    – How to protect power plants
    – How to produce power consistently
  • Environmental issues
    – Building power plants close to shore
    – Interfering with life and sediment movement

Wave Power Plant

  • First commercial wave power plant began operating in 2000.
  • LIMPET 500 – Land Installed Marine Powered Energy Transformer
    – Coast of Scotland
    – 500 kilowatts of power under peak operating capacity

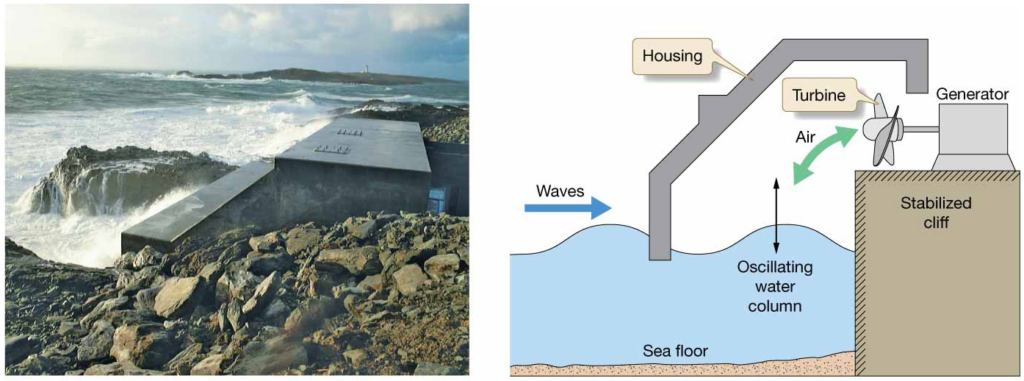

How a wave power
plant works.
How a wave power plant works.

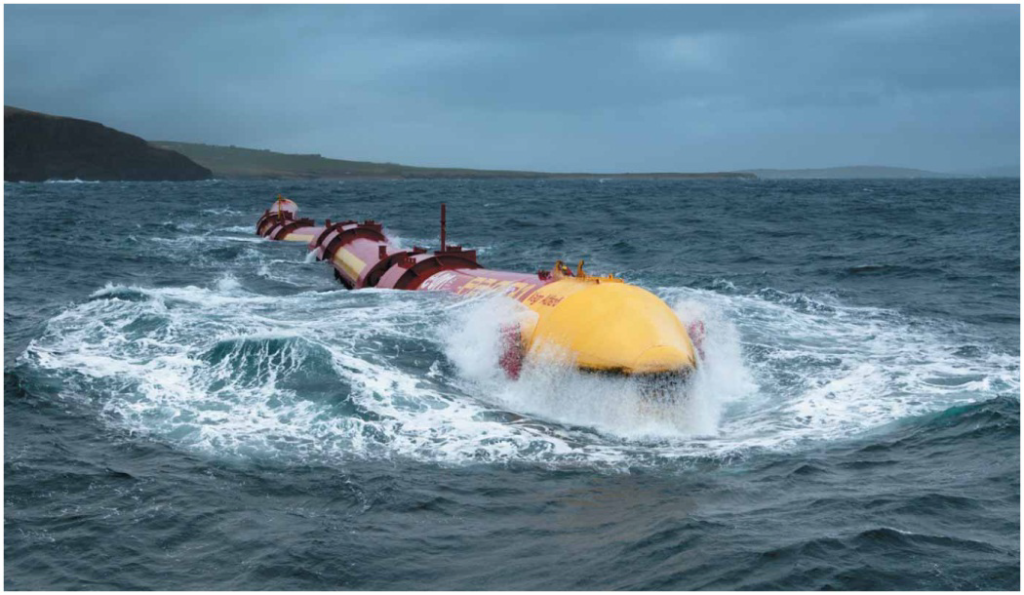

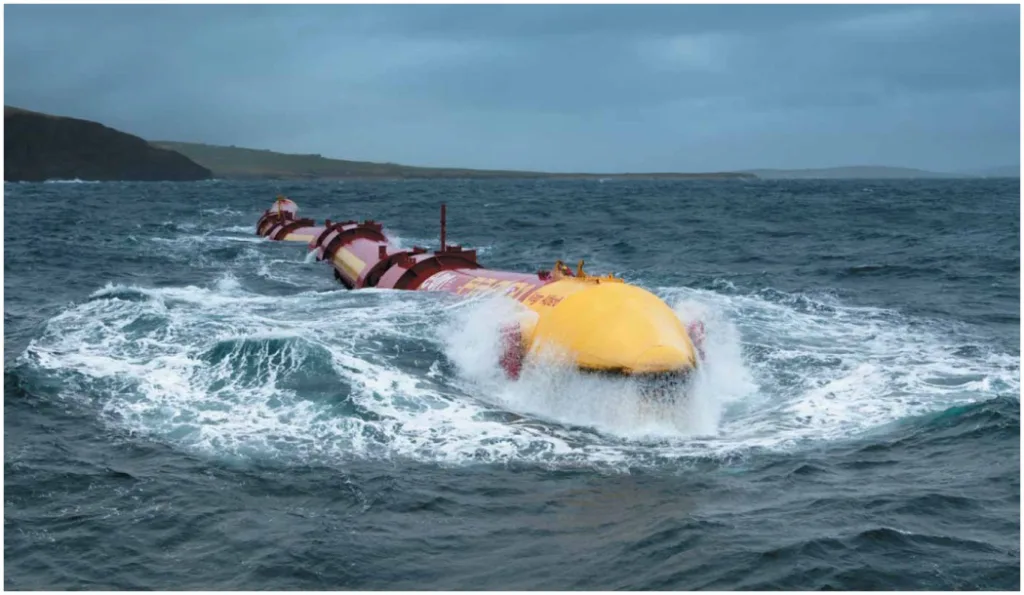

Wave Farms

  • Portugal – 2008
    – Ocean Power Delivery
    – First wave farm
  • About 50 wave power development projects globally
Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 65

Global Wave Energy Resources

Chapter 8 Lecture Waves and WaterDynamics
Chapter 8 Lecture Waves and WaterDynamics 66

Leave a Reply
